QMTECH Mister FPGA SOC Altera Cyclone V FPGA 5CSEMA6U23
Product description
The QMTech MiSTer is a cost-effective, FPGA-based clone of the DE10-Nano board, designed to accurately emulate classic video game consoles, computers, and arcade machines. It runs the open-source MiSTer project software to provide lag-free, hardware-level retro gaming, typically featuring 128MB of RAM, USB hub support, and enhanced audio/video output options.
The QMTech MiSTer recreates retro systems (e.g., NES, SNES, Genesis, PlayStation, Saturn) at the circuit level (FPGA) rather than using software emulation.
Packing List:
One factory assembled QMTECH Mister including below four items:
1. One QMTECH Cyclone V SoC 5CSEMA6U23 Board with 128MB Built-in SDRAM;

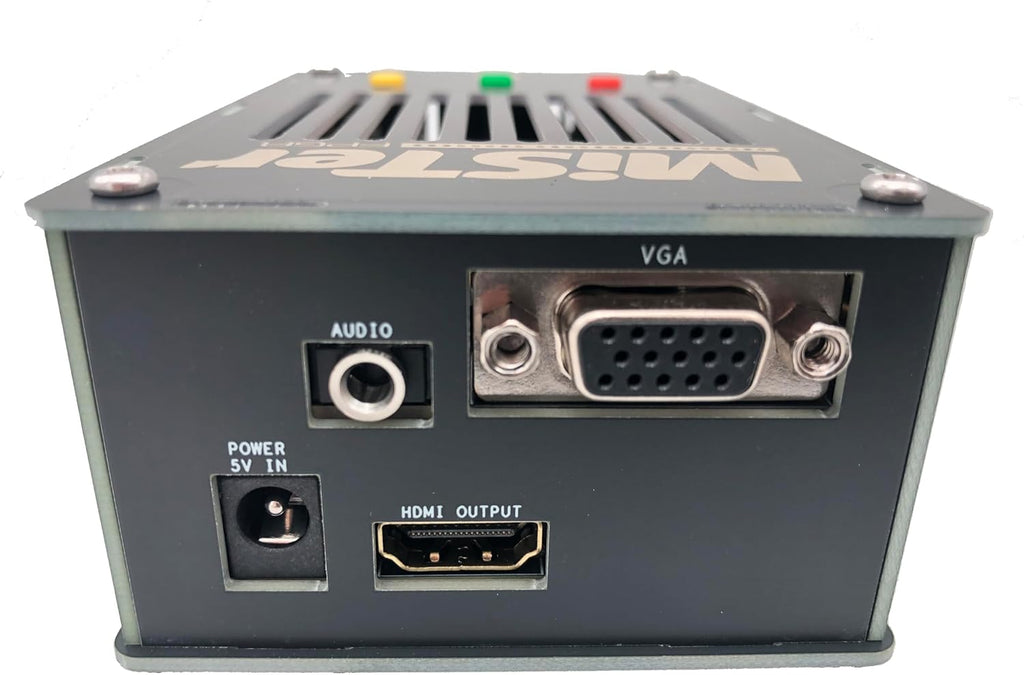

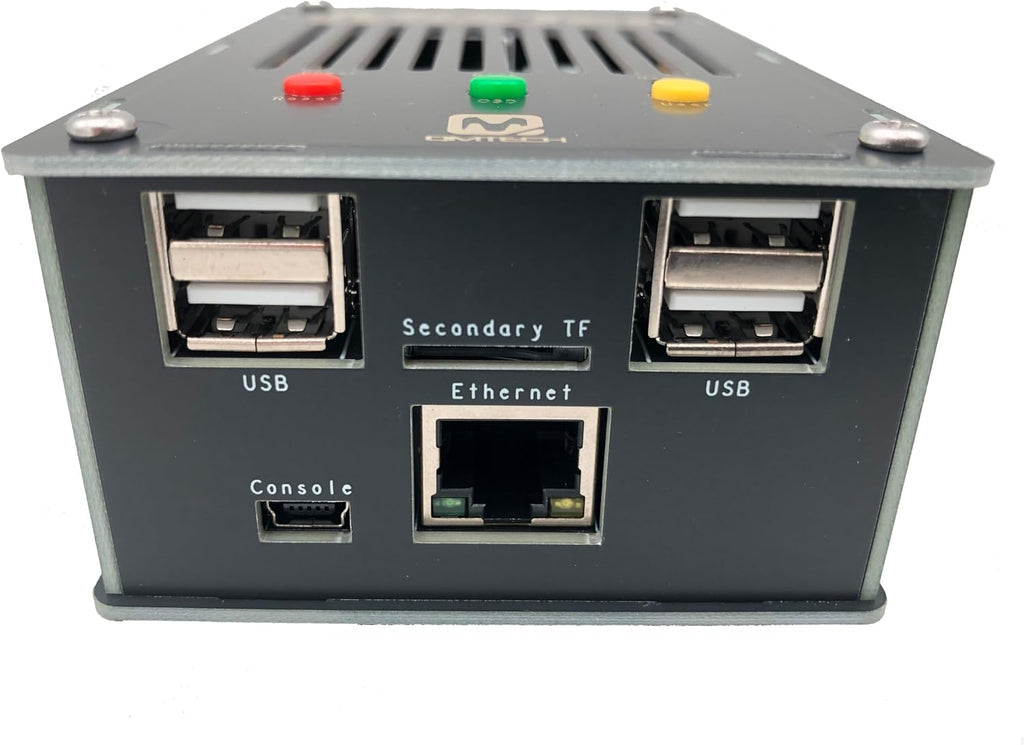

2. One QMTECH Official IO board: VGA Display, 3.5mm Audio Header, SNAC, 4-port USB Hub, RTC (CR1220 battery NOT included);

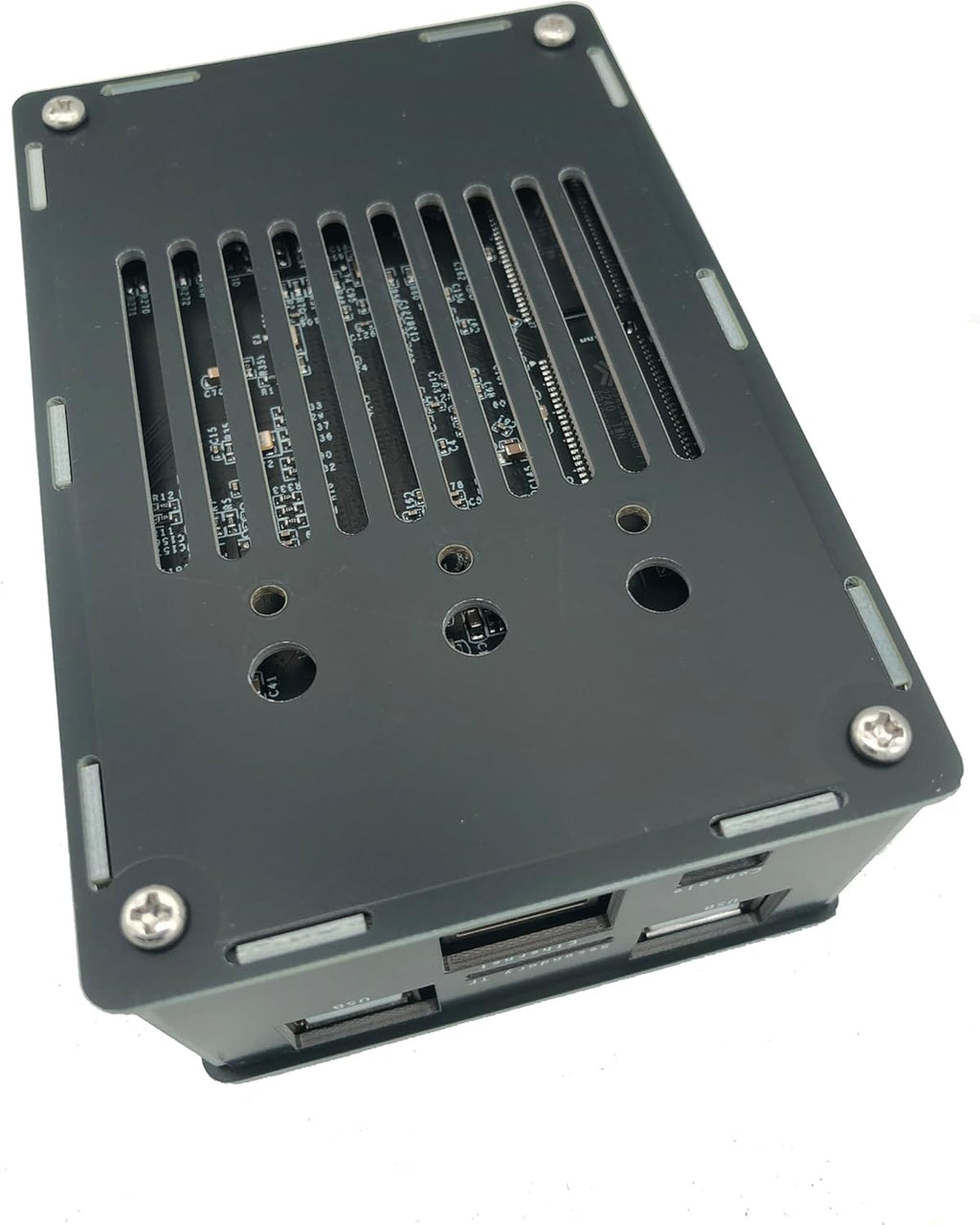

3. One QMTECH Case(Case is made of PCB, not Acrylic);
4. One Sandisk 32GB TF card;
One 5V DC power adapter
Schematic, User Manual, Test Program are provided via below Github:
https://github.com/ChinaQMTECH/QMTECH_Cyclone_V_SoC_KFB_With_Dual_SDRAM
